Chinese Professional High Bay Light - 150lm/W CE RoHS T8 LED Tube Light – Eastrong
Chinese Professional High Bay Light - 150lm/W CE RoHS T8 LED Tube Light – Eastrong Detail:
Technical Specification
|
Model No. |
Size (cm) |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
Certificate |
|
TU002-06C008 |
60 |
8 |
AC200-240 |
3000-6500 |
960 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU002-12C016 |
120 |
16 |
AC200-240 |
3000-6500 |
1920 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU002-15C022 |
150 |
22 |
AC200-240 |
3000-6500 |
2640 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU002-06C008 |
60 |
8 |
AC200-240 |
3000-6500 |
1200 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU002-12C016 |
120 |
16 |
AC200-240 |
3000-6500 |
2400 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU002-15C022 |
150 |
22 |
AC200-240 |
3000-6500 |
3300 |
>80 |
>0.9 |
IP20 |
EMC,LVD |

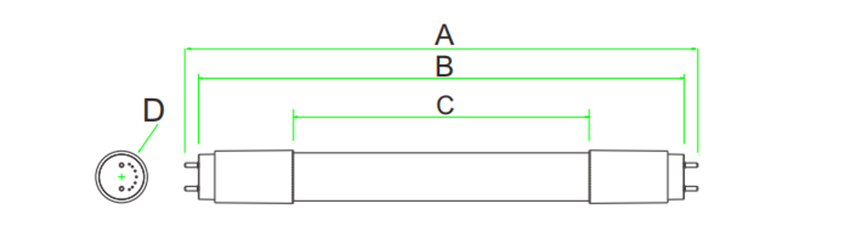

Dimension
|
Model No. |
A(mm) |
B(mm) |
D(mm) |
|
TU002-06C008 |
603 |
588 |
28 |
|
TU002-12C016 |
1213 |
1198 |
28 |
|
TU002-15C022 |
1513 |
1498 |
28 |

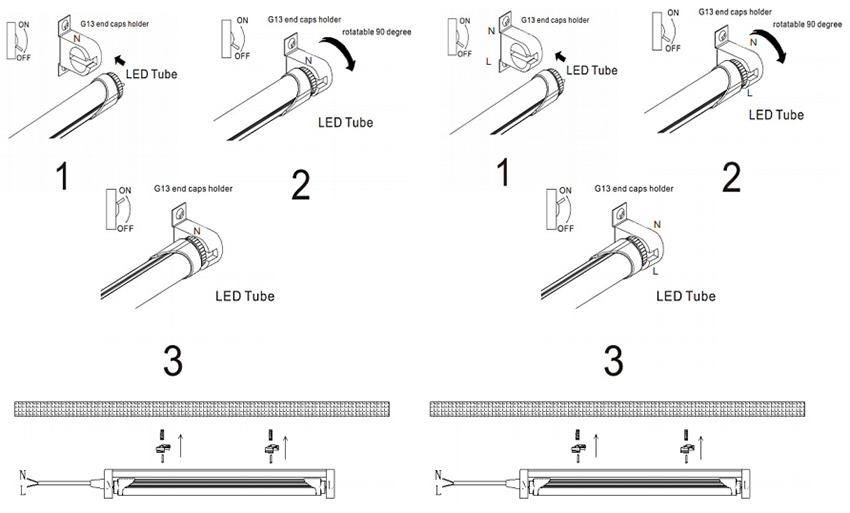

Installation

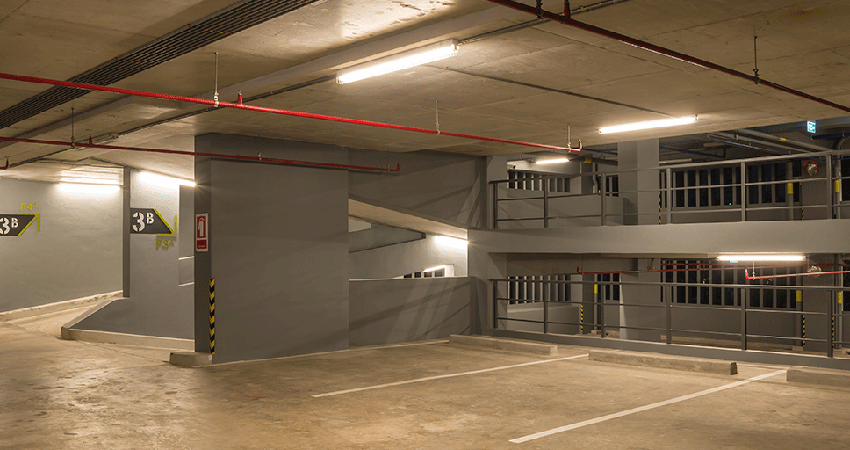

Application
- Supermark, shopping mall, retail;
- Factory, warehouse, parking lot;
- School, corridor, public building;
We support custom-made parameters, specifications and package of all the products.
Customers are warmly welcome to visit our factory!
