Waterproof LED IP65 Tri-proof Light

Product Features

1.Integrated co-extrusion full plastic design more affordable, high safety performance ;
2.PC body with features of waterproof, dust-proof, novel structure, etc.
3.High performance material housing is better for harsh environments;
4.High luminous efficiency output 110-120lm/W;
5.Mainly apply to outdoor,moist places ,such as factory, parking lot,warehouse etc.

Send email to us Download as PDF

Product Detail

Product Tags

Features

Waterproof IP65 LED Tri-proof light with high efficacy delivering substantial energy saving. For its excellent water-proof function, suitable for both dry and wet location. It can be used as a multi-purpose replacement for these applications: vapor-tight & wrap-around. Ideal for stairwells, factories, parking structures, tool shops, etc.

Technical Specification

Model No.	Size (cm)	Power (W)	Input Voltage (V)	CCT (K)	Lumen (lm)	CRI (Ra)	PF	IP Rate	Warranty
TP011-06C018	60	18	AC200-240	3000-6000	1980	>80	>0.9	IP65	3 Years
TP011-12C036	120	36	AC200-240	3000-6000	3960	>80	>0.9	IP65	3 Years
TP011-15C046	150	46	AC200-240	3000-6000	5060	>80	>0.9	IP65	3 Years

Dimension

Model No.	L(A=mm)	W(C=mm)	H(D=mm)
TP011-06C018	580	65	40
TP011-12C036	1180	65	40
TP011-15C046	1480	65	40

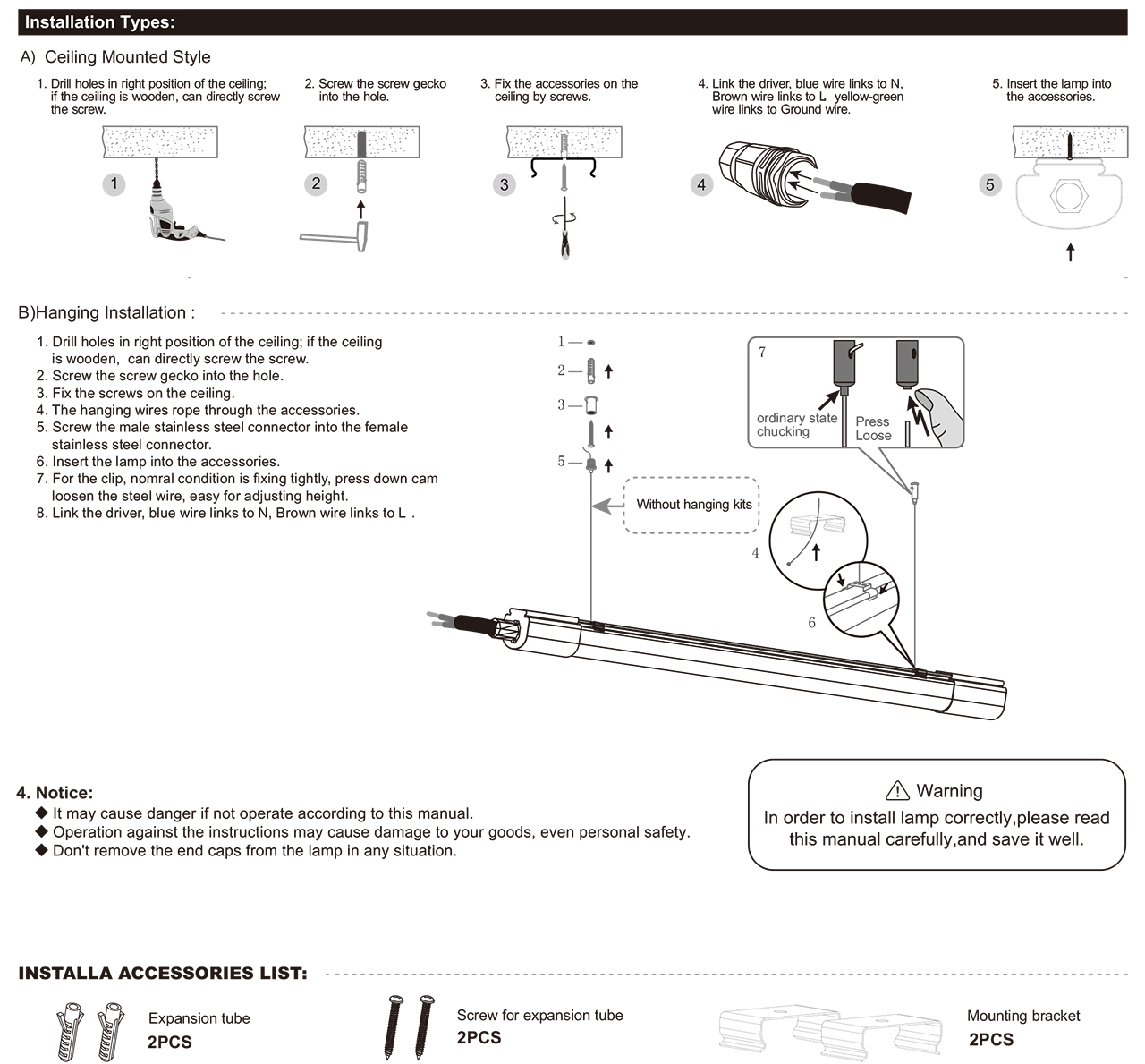

Installation and Wiring

Package

Size	Power	Inner Box	Master Carton	Qty/Carton	N.W./Carton	G.W./Carton
600mm	16W	595x70x45mm	615x295x245mm	20PCS	7.5KG	9.5KG
1200mm	36W	1195x70x45mm	1215x295x245mm	20PCS	16.5KG	18.5KG
1500mm	46W	1495x70x45mm	1515x295x245mm	20PCS	19KG	21.5KG

Application

1.Cold storage, ice storage, freezer chamber, refrige house;
2.Food processing factory, restaurant, kitchen;
3.Factory, warehouse, workshop, parking lot;
