Factory Price For Led Linear Light Ip65 - 4FT 5FT 8FT LED Strip Fixture Indoor Linear Light – Eastrong
Factory Price For Led Linear Light Ip65 - 4FT 5FT 8FT LED Strip Fixture Indoor Linear Light – Eastrong Detail:
Features
LED Strip Linear Light 4FT, 5FT and 8FT 36 watt, 45 watt and 72 watt delivers over 120lm/W efficiency of 5000K daylight white light. Industry-leading performance for both life and efficacy. 50,000 hour LED and 5.5 times longer than fluorescent.122 lumens per watt ultra efficient energy-saving uniform illumination with no visible LED pixelation. 0-10V dimming. Steel housing and polycarbonate lens. Fast and easy install. Great versatile choice for parking garage, warehouse, office, stairwell, restroom, storage units and retail stores.
1. Available for 4ft and 8ft as per applications. 36 watts – 72 watts
2. Surface mounting or Chain mounting for different applications
3. Easy installation and lower maintenance, and one-piece housing does not require additional accessories, more cost-effective
4. Long life span 50,000 hours
Technical Specification
|
Model No. |
Size |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
|
BA004-12C036 |
4FT |
36 |
AC220-240 |
3000-6500 |
4320-4680 |
>80 |
>0.9 |
IP20 |
|
BA004-15C045 |
5FT |
45 |
AC220-240 |
3000-6500 |
5400-5850 |
>80 |
>0.9 |
IP20 |
|
BA004-24C072 |
8FT |
72 |
AC220-240 |
3000-6500 |
8640-9360 |
>80 |
>0.9 |
IP20 |
Dimension
|
Model No. |
A(L=mm) |
B(W=mm) |
C(H=mm) |
|
BA004-12C036 |
1220 |
80 |
81 |
|
BA004-15C045 |
1530 |
80 |
81 |
|
BA004-24C072 |
2440 |
80 |
81 |
Package
|
Size |
Rated Power |
Inner Box |
Master Carton |
Qty/Carton |
N.W./Carton |
G.W./Carton |
|
4FT |
36W |
1250x85x85mm |
1270x440x190mm |
10PCS |
16KG |
17.5KG |
|
5FT |
45W |
1560x85x85mm |
1580x270x275mm |
9PCS |
17KG |
18.5KG |
|
8FT |
72W |
2470x85x85mm |
2490x270x190mm |
6PCS |
18KG |
19.5KG |
Application
Supermarket, shopping mall, retail;
Factory, warehouse, parking lot;
School, corridor, public building;
We support custom-made parameters, specifications and package of all the products.
Customers are warmly welcome to visit our factory!

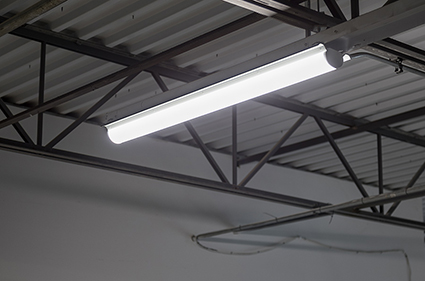

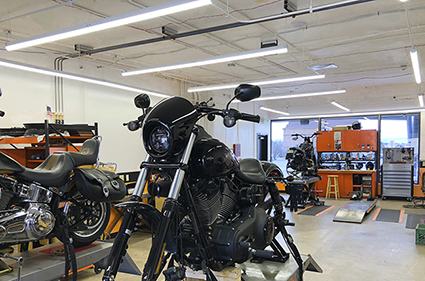

Product detail pictures:
