Hot-selling China Rotatable Surface Light 120cm 50W 100lm LED Triproof Linear Lighting with Linkable

Product Features

  1. IP65 water-proof, dust-proof, IK10 pressure-proof;
  2. Strong aluminum profile with excellent heat dissipation;
  3. Special design on end caps convenient for maintenance and continuous linkable;
  4. Full range of options including emergency, dimmable, DALI and microwave motion sensor ;
  5. Tridonic and OSRAM power supply to provide 50,000 hours long lifetime;
  6. EMC,LVD and RoHS certified.


Product Detail

Product Tags

It is a great way to further improve our products and repair. Our mission is always to create innovative products to prospects with a superior expertise for Hot-selling China Rotatable Surface Light 120cm 50W 100lm LED Triproof Linear Lighting with Linkable, We encourage you to make contact as we are looking for partners in our venture. We are sure you will find doing business with us not only fruitful but also profitable. We are ready to serve you with what you require.
It is a great way to further improve our products and repair. Our mission is always to create innovative products to prospects with a superior expertise for China LED Linear Light 50W, Smart Tri-Proof Light 120cm, With the effort to keep pace with world’s trend, we are going to always endeavor to meet customers’ demands. If you want develop any other new products and solutions, we can customize them in your case. If you feel interest in any of our goods or want develop new merchandise, remember to feel free to contact us. We’re looking forward to forming successful business relationship with customers all over the world.
Technical Specification

Model No.

Size

(cm)

Power

(W)

Input Voltage

(V)

CCT

(K)

Lumen

(lm)

CRI

(Ra)

PF

IP Rate

Certificate

TP005-06C020

60

20

AC220-240

3000-6500

2400

>80

>0.9

IP65

EMC,LVD

TP005-12C040

120

40

AC220-240

3000-6500

4800

>80

>0.9

IP65

EMC,LVD

TP005-15C060

150

60

AC220-240

3000-6500

7200

>80

>0.9

IP65

EMC,LVD

TP005-24C080

240

80

AC220-240

3000-6500

9600

>80

>0.9

IP65

EMC,LVD

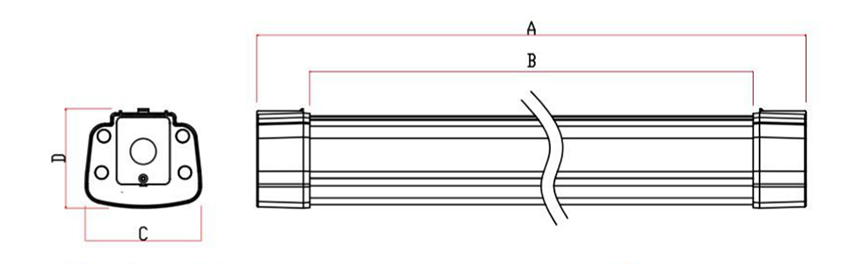

Dimension

01

Model No.

A(L=mm)

C(W=mm)

D(H=mm)

TP005-06C020

600

86

70

TP005-12C040

1200

86

70

TP005-15C060

1500

86

70

TP005-24C080

2400

86

70

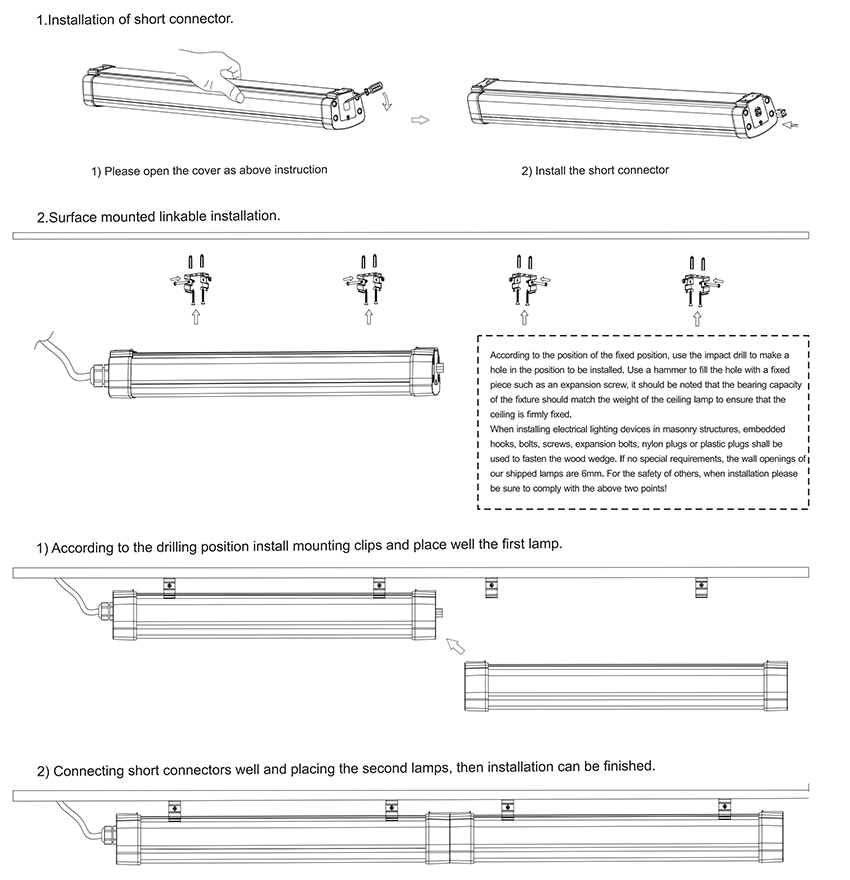

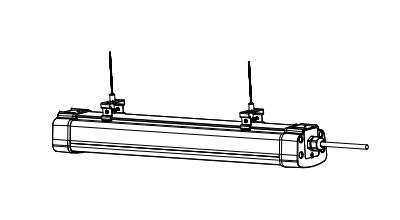

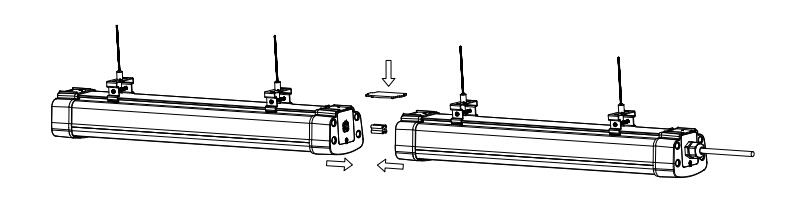

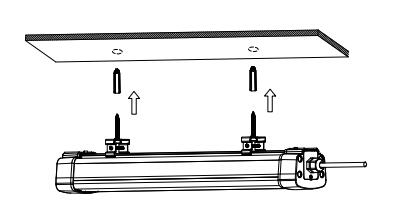

Installation

4 5

6

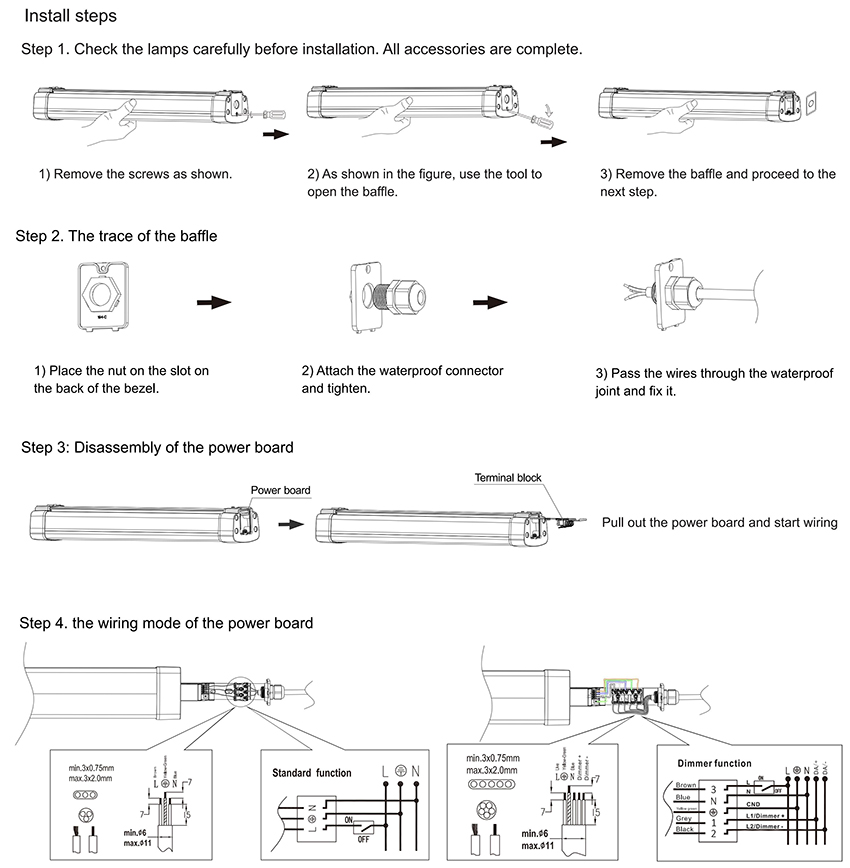

Wiring

X15X说明书(常规版)_00

X15X说明书(常规版)_0000

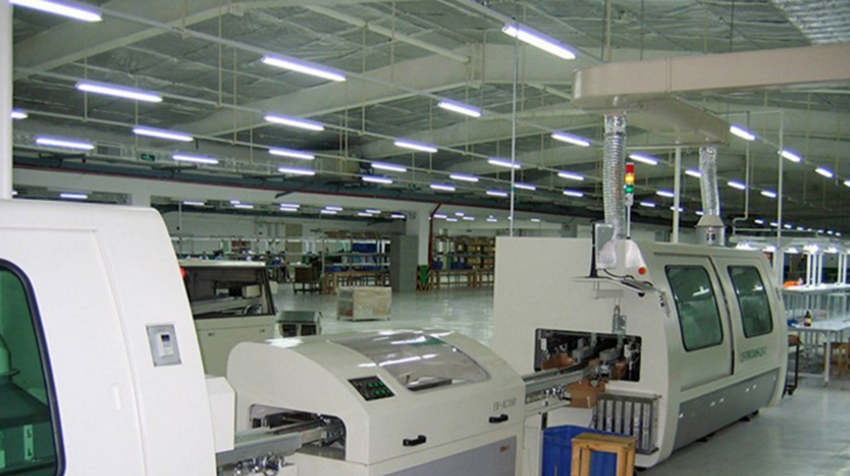

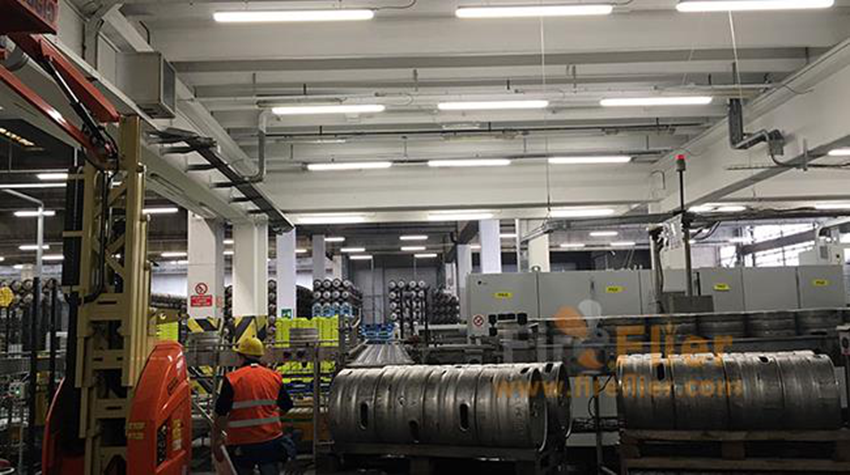

Application

  1. Workshop, repair plant;
  2. Factory, warehouse, parking lot;
  3. Railway station, airport, MTR station;

03
04

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
