62×62 30×120 Screwless Surface Mounting Frame

Product Features

Fast and convenient assembly type, without any screws and tools design. Plug-in surface mounting frame 60x60cm 62x62cm and 30x120cm white for mounting the LED panel.
Surface mounting frame made of high quality 6063 aviation aluminum. This surface mounting frame picks up your LED panel precisely, together with the power supply on the back, you achieve with this frame a special look when you mount your LED panel on the ceiling or wall, or in any other possible mounting position.

With a few simple steps, you mount the frame completely, then attach the frame in the designated place. Finally, push in the panel and make contact with the power supply, and you’re done!
Color: White or Silver
Height: 51mm
Thickness: 1.0mm
Max panel thickness: 15mm


Product Detail

Product Tags

Features

Plug-in Surface mounting frame for mounting the LED panel, easy and convenient for surface mounting installations for LED panels in locations where recessed mounting is not possible. The screwless surface mount frame is designed to solve the hard to be assembled problem that the old type surface mount frames have. It is very easy to install, save 80% labor cost.

1. Compatible with all LED panel sizes
2. Easy and safe installation
3. LED driver can be placed inside
4. Ideal for plasterboard/concrete ceilings
5. Silver or white color aluminum finish

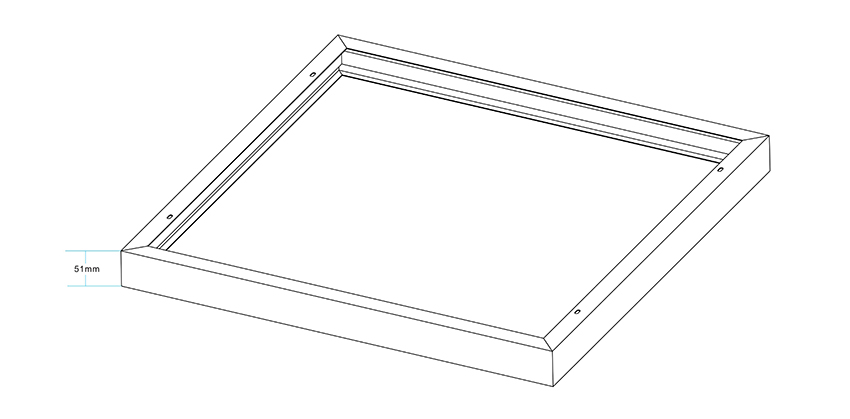

Dimension

no-screw surface mounted frame

LED Panel Size(mm)

A(mm)

B(mm)

Thickness(mm)

595x595

599

599

51

620x620

624

624

51

295x1195

299

1199

51

595x1195

599

1199

51

295x295

299

299

51

2x2

607

607

51

2x4

607

1216

51

1x4

305

1216

51

Installation

led panel frame installation instruction

Package

Size

Qty/Carton

Carton Size

N.W./Carton

G.W./Carton

595x595mm

20PCS

635x230x290mm

18.5KG

19KG

620x620mm

20PCS

660x230x290mm

19.3KG

19.8KG

295x1195mm

12PCS

1235x185x190mm

13.3KG

14.3KG

595x1195mm

12PCS

1235x185x190mm

15.8KG

16.8KG

2x4

12PCS

1250x185x190mm

20.3KG

21.3KG

2x2

20PCS

635x230x290mm

16.2KG

17.2KG

1x4

12PCS

1250x185x190mm

13.8KG

14.8KG

Remark: The box comes with metal connector, mounting screws and plastic expansion bolts, manual.

Application

surface mount panel

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
