UGR19 UGR16 600×600 High-quality LED Panel Light

Product Features

  1. Well-proportioned light emitting;
  2. Uniform CCT without fragmentization difference;
  3. Light distributes evenly, bright without dark space;
  4. The most scientific of LGP collocation;
  5. 15 < UGR < 19 ;
  6. LED panel light with 135lm/W output lumen efficiency.


Product Detail

Product Tags

Features

1. Uniform and even light output

2. Energy-saving of 60% to 70% than conventional lighting

3. UGR<19 and UGR<16 available

4. 3.0mm thickness PMMA LGP, no-yellowing

5. Lifespan (depends on normal working): 50,000 hrs

Technical Specification

Model No.

Size

(mm)

Power

(W)

Input Voltage

(V)

CCT

(K)

Luminous

(lm/W)

CRI

(Ra)

PF

IP Rate

Certificate

606040-012

595x595

40

AC200-240

3000-6500

100-140

>80

>0.9

IP20

EMC,LVD

626240-012

620x620

40

AC200-240

3000-6500

100-140

>80

>0.9

IP20

EMC,LVD

031240-012

295x1195

40

AC200-240

3000-6500

100-140

>80

>0.9

IP20

EMC,LVD

061260-012

595x1195

60

AC200-240

3000-6500

100-140

>80

>0.9

IP20

EMC,LVD

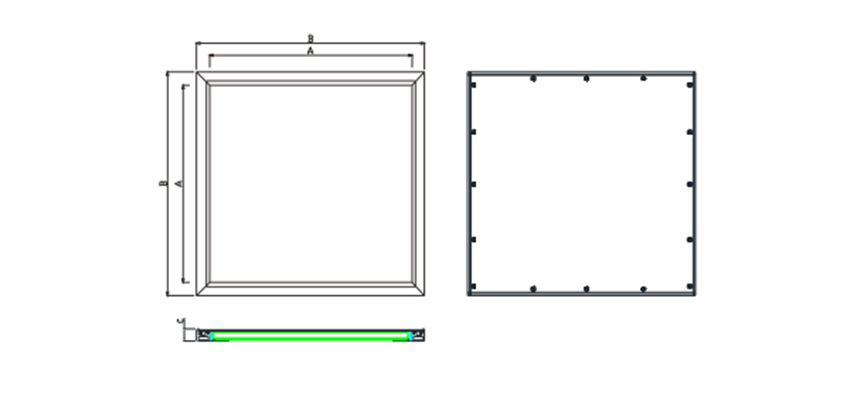

Dimension

01

Model No.

B(L=mm)

B(W=mm)

Thickness(mm)

606040-012

595

595

10

626240-012

620

620

10

031240-012

295

1195

10

061260-012

595

1195

10

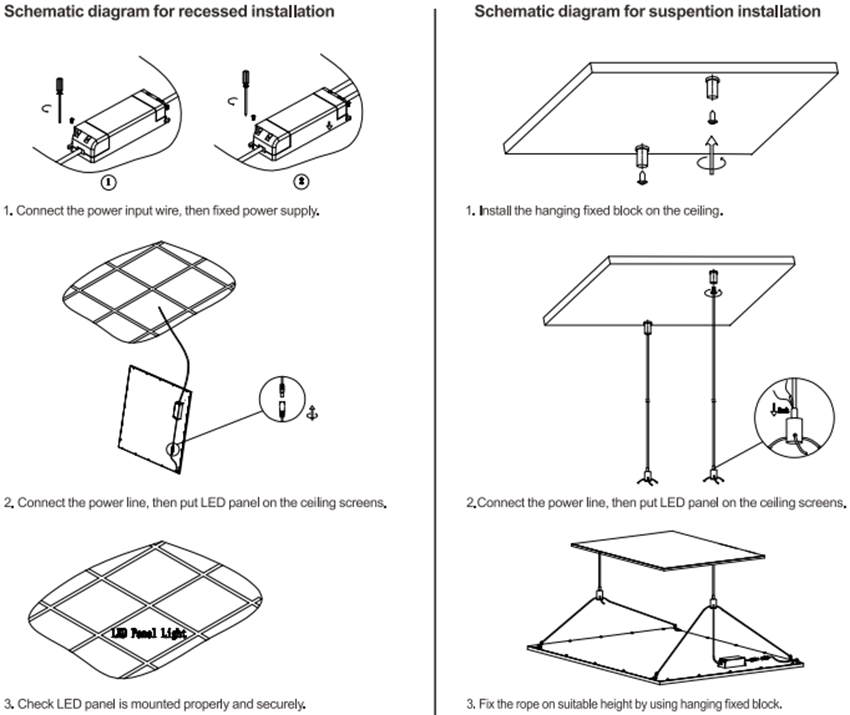

Installation

02

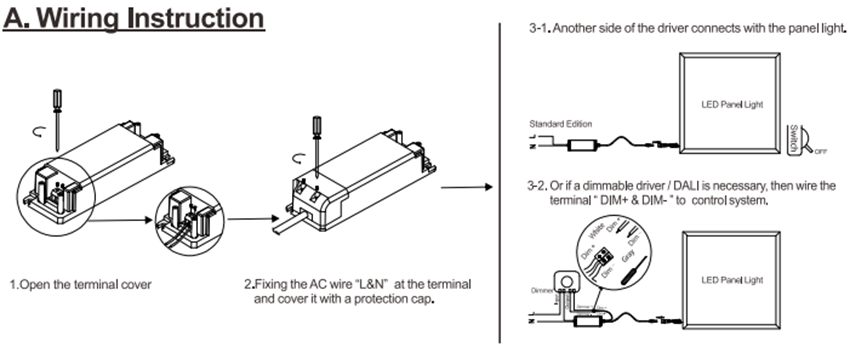

Wiring

03

Package

Size

Rated Power

Inner Box

Master Carton

Qty/Carton

N.W./Carton

G.W./Carton

595x595mm

40W

660x60x645mm

670x200x680mm

6PCS

20.1KG

22.2KG

620x620mm

40W

685x60x670mm

670x200x710mm

6PCS

22.1KG

24.9KG

295x1195mm

40W

1235x60x360mm

1260x140x380mm

4PCS

14.3KG

16.7KG

595x1195mm

60W

1235x40x670mm

1255x140x690mm

3PCS

18.7KG

20.8KG

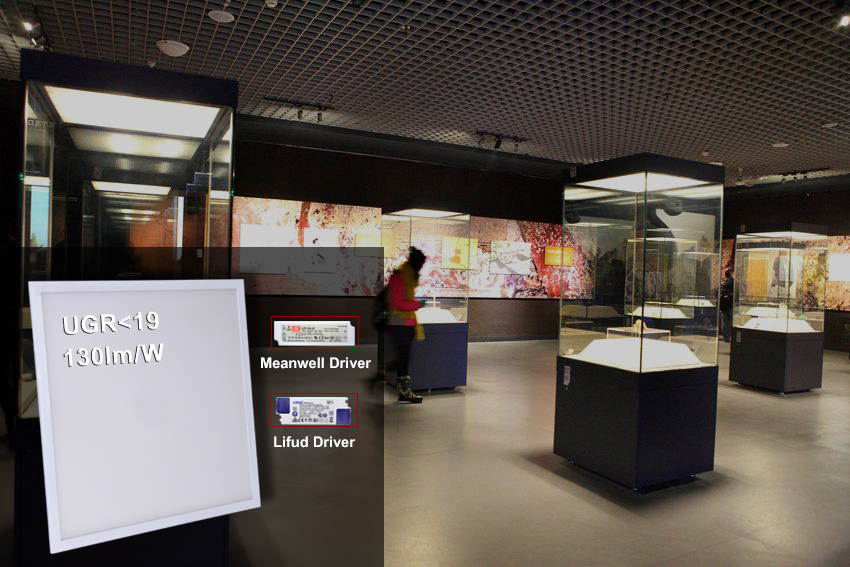

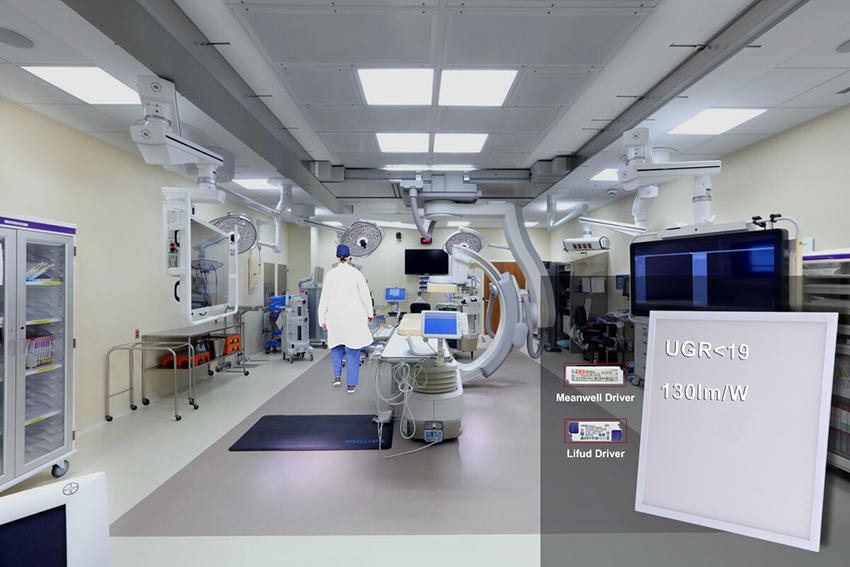

Application

  1. Operation room;
  2. Biology&medicine lab, museum;
  3. Hospital and prime beauty salon;

04

06

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
