LED High Bay Light

Product Features

  1. Quality structure design with black color appearance;
  2. A6063 die-casting aluminum with excellent heat dissipation;
  3. 60°, 90°, 120° beam angle option;
  4. Using brand LED and driver to ensure quality and lifespan;
  5. High luminous 140lm/W output;
  6. IP65 IK IK08 grade;


Product Detail

Product Tags

Technical Specification

Model No.

Size

(mm)

Power

(W)

Input Voltage

(V)

CCT

(K)

Lumen

(lm)

CRI

(Ra)

PF

IP Rate

Certificate

28A100-UF4

Φ260

100

AC100-277

3000-6500

14000

>80

>0.9

IP65

EMC,LVD

34A150-UF4

Φ305

150

AC100-277

3000-6500

21000

>80

>0.9

IP65

EMC,LVD

40A200-UF4

Φ345

200

AC100-277

3000-6500

28000

>80

>0.9

IP65

EMC,LVD

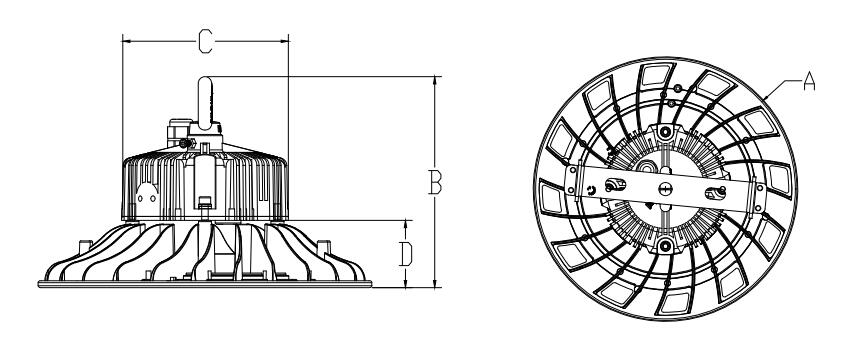

Dimension

9

Model Number

A(mm)

B(mm)

C(mm)

D(mm)

28A100-UF4

260

164

129

52

34A150-UF4

305

171

150

60

40A200-UF4

345

181

192

66

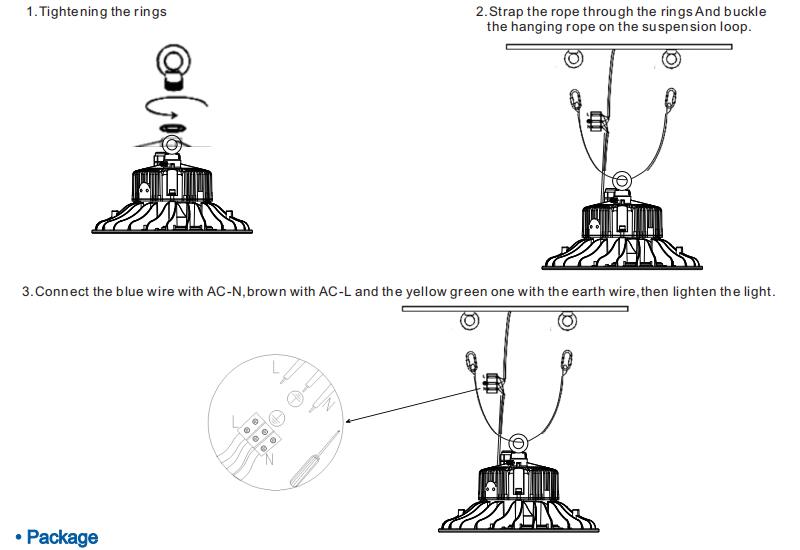

Installation & Wiring

11

Application

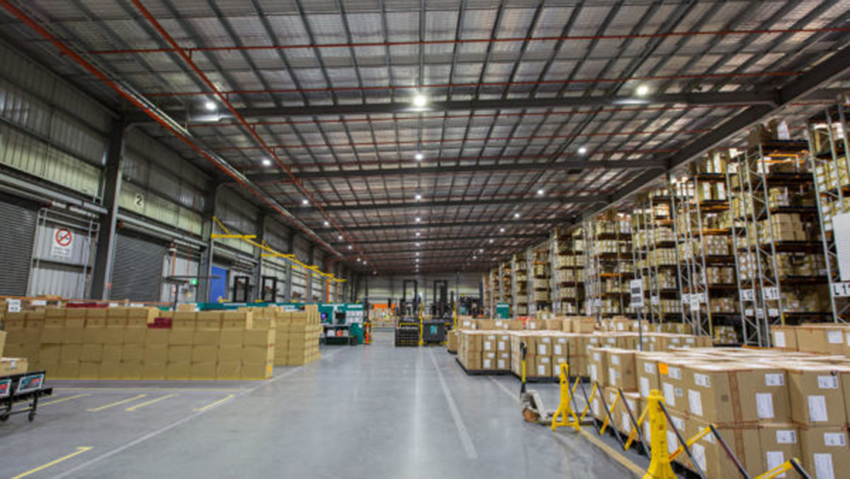

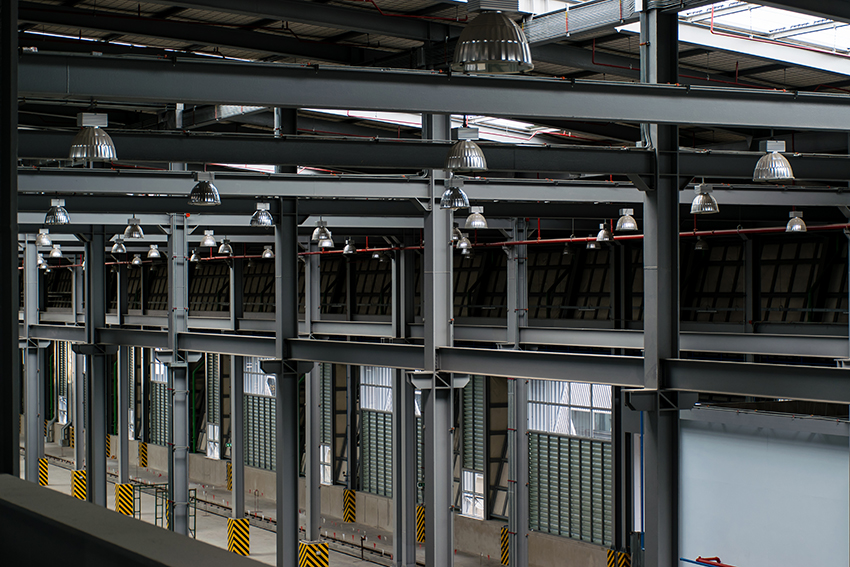

  1. Warehouse, factory, workshop;
  2. Gym, Industrial plant, exhibition central;
  3. Large manufacturing plant;

03

04

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
